Understanding the Tevo Tarantula 2 Extruder
The Tevo Tarantula 2 is a popular 3D printer, and a fundamental understanding of its extruder is crucial for successful 3D printing. The extruder is the component responsible for melting and pushing the filament through the nozzle, thus laying down the material layer by layer to create a three-dimensional object. It is a complex system composed of several interconnected parts. This guide will break down each of these components and provide step-by-step instructions to help you understand, assemble, calibrate, and troubleshoot your Tevo Tarantula 2 extruder, ensuring optimal print quality and reducing common printing errors. This knowledge is invaluable for anyone looking to get the most out of their 3D printing experience.
Components of the Tevo Tarantula 2 Extruder
Understanding the various parts of your Tevo Tarantula 2 extruder is key to diagnosing problems and making necessary adjustments. Each component plays a vital role in the process of converting solid filament into molten plastic and extruding it onto the print bed. Each of these components work together to deliver precise and reliable performance. Detailed knowledge of these components enhances your troubleshooting capabilities and enables you to perform upgrades and maintenance with confidence. This detailed overview helps you to understand how each part affects the overall performance of your 3D printer.

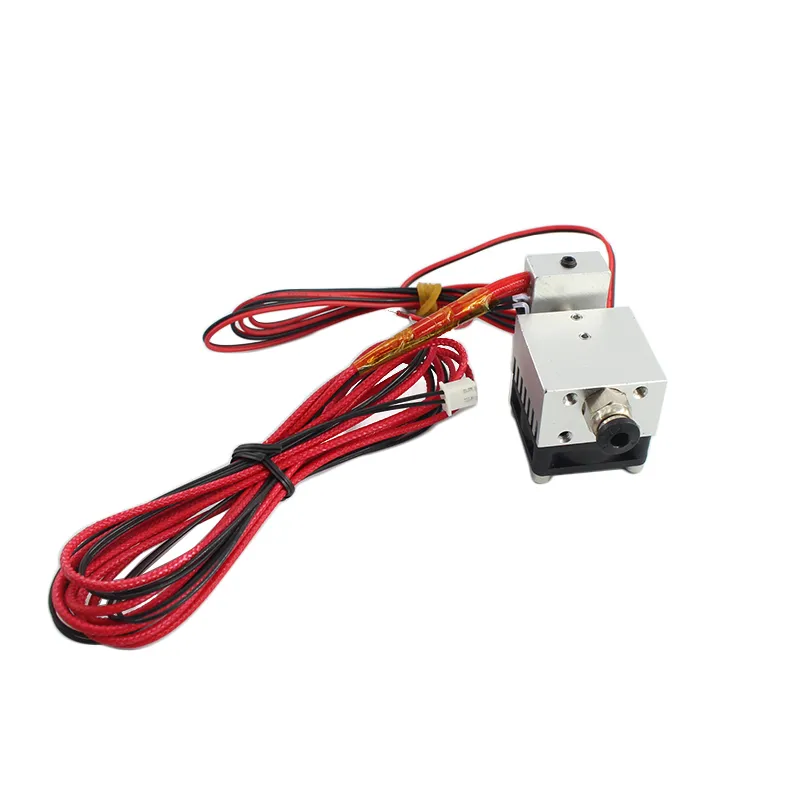

Hot End
The hot end is the heart of the extruder, responsible for heating and melting the filament. It typically consists of a heat break, a heat sink, and a nozzle. The heat break is a critical component that prevents heat from traveling up the extruder, while the heat sink dissipates heat to keep the upper portion of the extruder cool. The nozzle, usually made of brass or hardened steel, is the part that extrudes the molten plastic. The hot end’s design and efficiency directly impact print quality, so maintenance and proper setup are important for optimal performance.
Nozzle
The nozzle is a small, replaceable tip on the hot end that controls the flow and shape of the extruded filament. Nozzles come in various sizes, typically ranging from 0.2mm to 1.0mm or more, affecting the print’s resolution and print time. Smaller nozzles produce finer details but take longer to print, while larger nozzles allow for faster prints but with less detail. The nozzle material also matters; brass nozzles are common and offer good thermal conductivity, while hardened steel or other specialized nozzles are needed for abrasive filaments like carbon fiber-filled materials. Proper nozzle selection is crucial for achieving the desired balance between print quality and speed.
Heat Block
The heat block encases the heating cartridge and thermistor, transferring heat to the hot end and melting the filament. Heat blocks are usually made from aluminum or a similar material for good heat conductivity. Effective temperature control is necessary for consistent extrusion. The heat block’s design also influences how well the hot end maintains a consistent temperature. Make sure your heat block is secure and that your thermistor is securely in place to get accurate temperature readings, which are essential for achieving reliable prints.
Thermistor
The thermistor is a temperature sensor that monitors the hot end’s temperature, sending data to the printer’s control board. This data allows the printer to regulate the temperature of the hot end, ensuring the filament melts properly. Proper thermistor placement and secure connections are crucial for accurate temperature readings. A malfunctioning thermistor can lead to under-extrusion or even damage to the printer’s components due to temperature runaway. If you suspect a thermistor problem, replace it immediately to prevent printing problems.
Heating Cartridge
The heating cartridge, or heater cartridge, is a small, cylindrical heating element that provides the heat for melting the filament inside the hot end. It is inserted into the heat block and connected to the printer’s power supply. The heating cartridge’s power determines how quickly the hot end heats up. Always be cautious while working with the heating cartridge because it gets very hot. When installing or replacing a heating cartridge, ensure it is securely seated in the heat block for efficient heating and even temperature distribution.

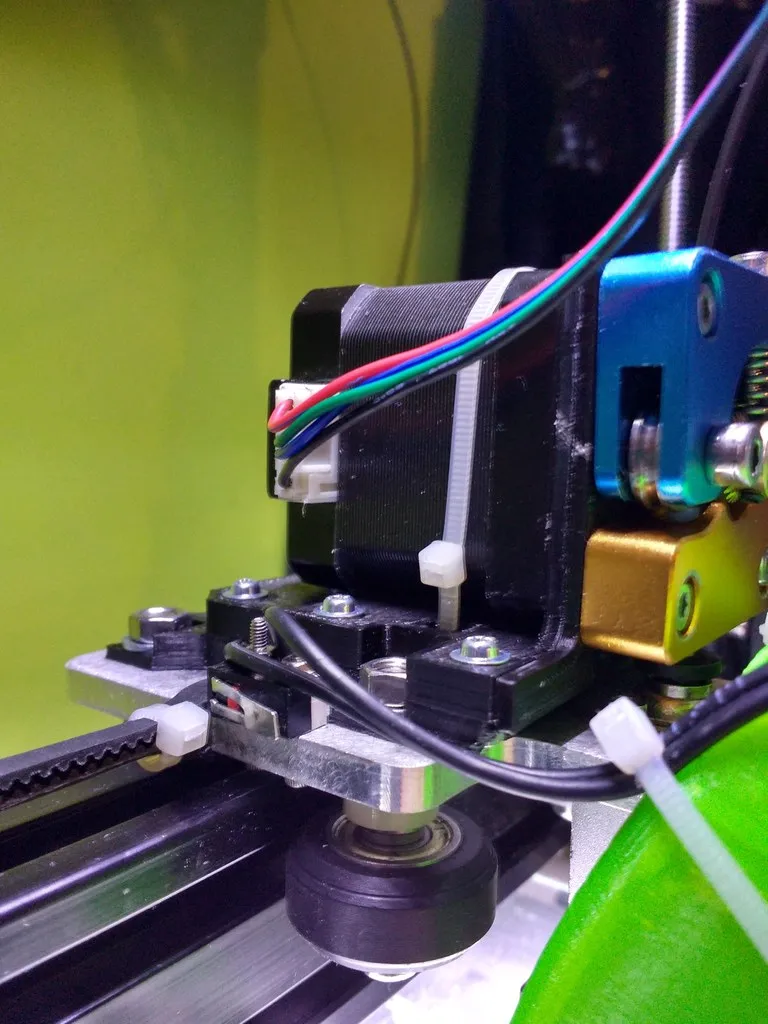

Extruder Motor
The extruder motor, typically a stepper motor, is responsible for pushing the filament through the extruder. The motor’s torque and speed influence the extrusion rate, which directly affects the amount of plastic extruded per unit of time. Proper motor calibration, particularly the E-steps per millimeter setting, is critical for consistent extrusion. Choosing the correct extruder motor is vital for reliable 3D printing. Over time, the motor could wear out, especially if it is overused or it is not well maintained. This motor must be maintained to deliver consistent performance.
Extruder Gear
The extruder gear, sometimes referred to as the drive gear or hobbed gear, grips the filament and pushes it into the hot end. Its design is crucial for consistent extrusion; the gear’s teeth must securely grip the filament without stripping or damaging it. The gear is usually made of hardened steel for durability. Keeping the gear clean and properly aligned with the filament path is vital for avoiding extrusion issues. Periodic cleaning and inspection can help maintain its effectiveness and prolong its lifespan.
Filament Path
The filament path is the route the filament takes from the spool, through the extruder, and into the hot end. It typically includes the filament guide tube, the extruder gear, and the hot end itself. A smooth, unobstructed filament path is essential for reliable extrusion. Any bends or obstructions along this path can cause friction, leading to under-extrusion or even jams. Regularly check and maintain the filament path for any obstructions, such as debris or excessive bends, to prevent print failures.

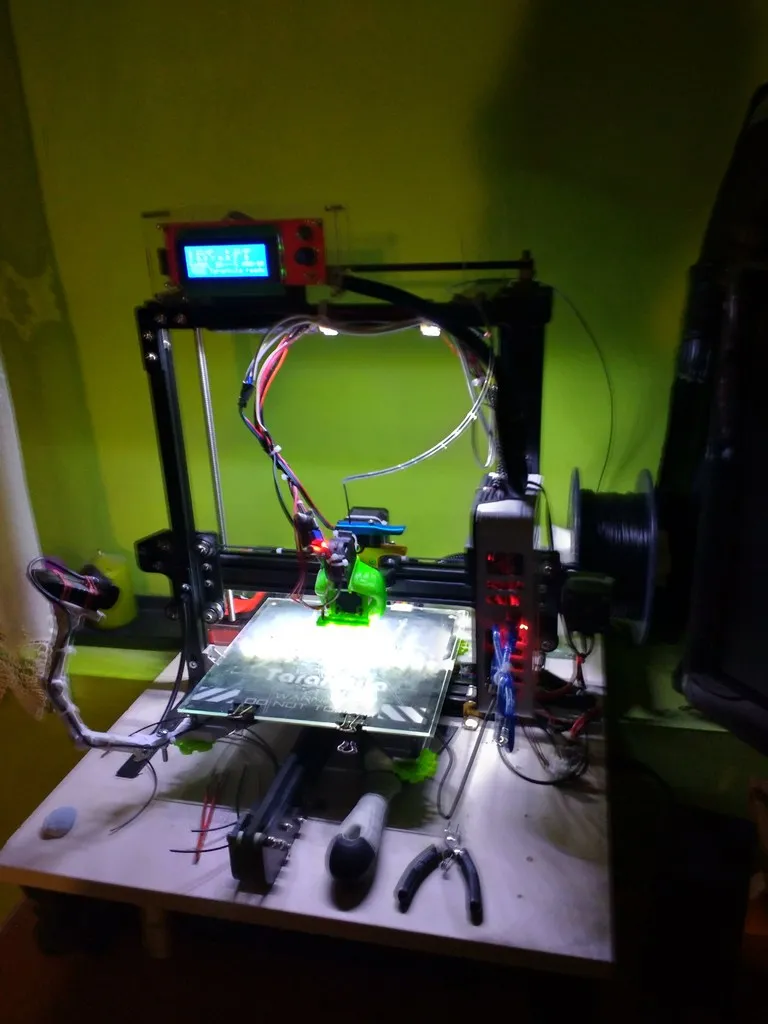

Assembling the Tevo Tarantula 2 Extruder
Assembling the extruder properly is critical for its functionality and the quality of your prints. Following the steps carefully can prevent issues down the line. This section will detail the proper steps to make sure your extruder is assembled correctly, preventing common problems and ensuring the best possible printing experience. Make sure to consult the documentation provided with your Tevo Tarantula 2 and follow all safety precautions.
Step-by-Step Assembly Guide
Assembling the Tevo Tarantula 2 extruder involves a few key steps that, if done correctly, ensure a reliable and high-performing 3D printing experience. Proper assembly prevents many common issues. This guide provides a clear and concise approach to assembly. Make sure to take your time, check your work at each stage, and use the correct tools and consult the documentation provided with your Tevo Tarantula 2 to prevent issues down the line and to improve your 3D printing experience.
Attaching the Hot End
Start by threading the hot end into the heat block. Ensure that it is securely fastened. Tighten the nozzle and any retaining screws, but avoid over-tightening, which can strip the threads. Make sure to use a wrench to tighten the nozzle and use the correct tightening torque to avoid leaks. Carefully tighten it enough to create a good seal but avoid damaging the components. Double-check the connections to ensure proper thermal contact between the components.
Mounting the Extruder Motor
Securely mount the extruder motor to the extruder assembly. Align the motor with the extruder gear and make sure the gear meshes correctly with the filament. Use the appropriate screws to fasten the motor to the extruder frame or bracket. After you mount the motor, double-check the alignment of the motor shaft and extruder gear. Make sure that the motor can move freely without any binding. Make sure the connections are secure before proceeding.
Connecting the Filament Path
Install the filament guide tube or the bowden tube, ensuring it connects seamlessly to both the extruder and the hot end. Make sure the tube is fully inserted to prevent any gaps where filament can escape or jam. Check the path for smooth filament travel and use the appropriate fittings to secure the tube. Ensure there are no sharp bends or kinks that can hinder filament movement. This step is very important for your printer to work correctly.
Wiring the Extruder
Carefully connect the wiring for the heating cartridge and the thermistor to the correct terminals on the printer’s control board. Make sure the connections are secure and that the wires are correctly polarized. Check the wiring diagram provided with your printer or extruder kit to identify the correct terminals and polarities. Proper wiring is critical for safety and functionality. Incorrect wiring can damage components or lead to printing problems. Ensure there are no loose connections and that the wires are routed safely away from moving parts.
Connecting to the Control Board
Connect the extruder motor wires to the control board, following the wiring diagram to ensure the correct polarity and connections. Secure the wires to prevent them from detaching during operation. Before powering on, check all connections to avoid shorts or other electrical issues. Make sure to identify the correct motor driver on your control board. Double-check all wire connections to prevent them from shorting or coming loose during operation. After this step, your extruder should be ready to print.

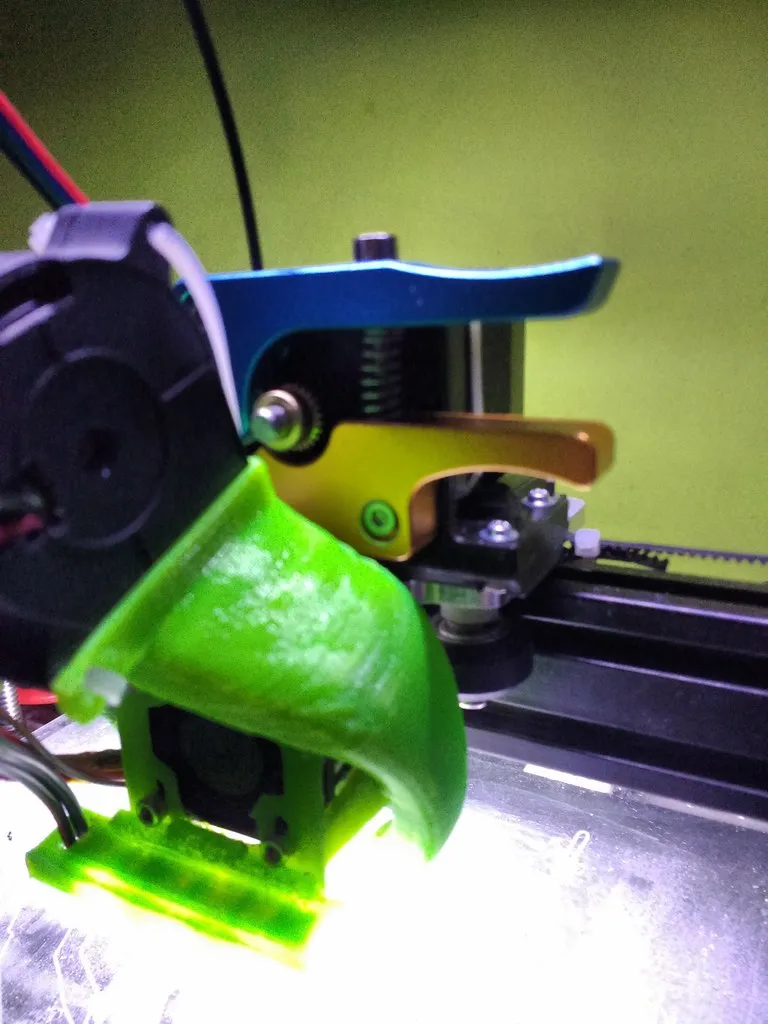

Calibration and Settings
Calibrating your extruder is crucial for achieving accurate and high-quality prints. Proper calibration ensures the correct amount of filament is extruded, which is essential for dimensional accuracy and print quality. This section details the calibration processes needed for your Tevo Tarantula 2 extruder, including calibrating extruder steps, adjusting the extrusion multiplier, and setting the correct temperature. The process will minimize common print errors. Performing this calibration makes a significant difference in the quality of your prints.
Calibrating the Extruder Steps
Calibrating the extruder steps, also known as E-steps, ensures that the extruder motor pushes the correct amount of filament. This is done by measuring how much filament is extruded when the printer commands it to extrude a specific length. Access the printer’s control panel or use the printer’s firmware configuration to set the E-steps per millimeter value. Perform a calibration test by heating the hot end to the appropriate temperature, marking the filament at a specific distance, and then commanding the extruder to extrude a certain length of filament. After the test, measure the actual distance of filament extruded and adjust the E-steps value accordingly. Repeat the process until the extruder extrudes the correct amount of filament.
Adjusting Extrusion Multiplier
The extrusion multiplier, or flow rate, fine-tunes the amount of filament extruded. This adjustment is done within your slicing software. Start with a baseline value, often 1.0. Then, print a test cube or a single-layer test pattern, and measure the width of the extruded lines. Adjust the extrusion multiplier up or down as necessary. If the lines are too thin, increase the extrusion multiplier, and if they’re too thick, decrease it. By properly setting the extrusion multiplier, you can eliminate gaps in the print layers and improve the dimensional accuracy of your prints.
Setting the Temperature
The correct printing temperature for the filament is critical for achieving optimal print quality and layer adhesion. The ideal temperature will vary depending on the filament type, but start with the manufacturer’s recommended temperature range for your filament. Heat the hot end to the recommended temperature and then extrude a small amount of filament. If the filament doesn’t extrude easily, increase the temperature. If the filament is oozing too much or stringing, decrease the temperature. Printing temperature plays a huge role in getting a good print. Make sure the temperature is adjusted depending on the filament being used.
Printing with the Tevo Tarantula 2 Extruder
Once the extruder is assembled and calibrated, you’re ready to start printing. Knowing the proper loading and unloading methods can prevent common printing problems and damage to your equipment. This will help ensure a smooth printing experience. Proper filament handling and machine operation are essential for producing high-quality 3D prints.
Filament Loading and Unloading
To load the filament, heat the hot end to the recommended temperature for your chosen filament type. Insert the filament into the extruder and gently push it until it starts to extrude from the nozzle. For unloading the filament, heat the hot end to the recommended temperature and use the printer’s control panel or your slicer to retract the filament. Always handle the filament carefully to prevent it from tangling or breaking. This process is important for getting a good print. Once you load and unload the filament, you are ready to proceed and start printing.
Troubleshooting Common Issues
Even with proper setup and calibration, you may encounter some common problems with your Tevo Tarantula 2 extruder. Understanding these issues and how to fix them is crucial for maintaining your printer’s performance. This section will address some of the most common problems that can occur with your 3D printer and provide solutions for each problem. Being able to quickly identify and resolve these problems will save you time and frustration and make your printing experience more enjoyable.

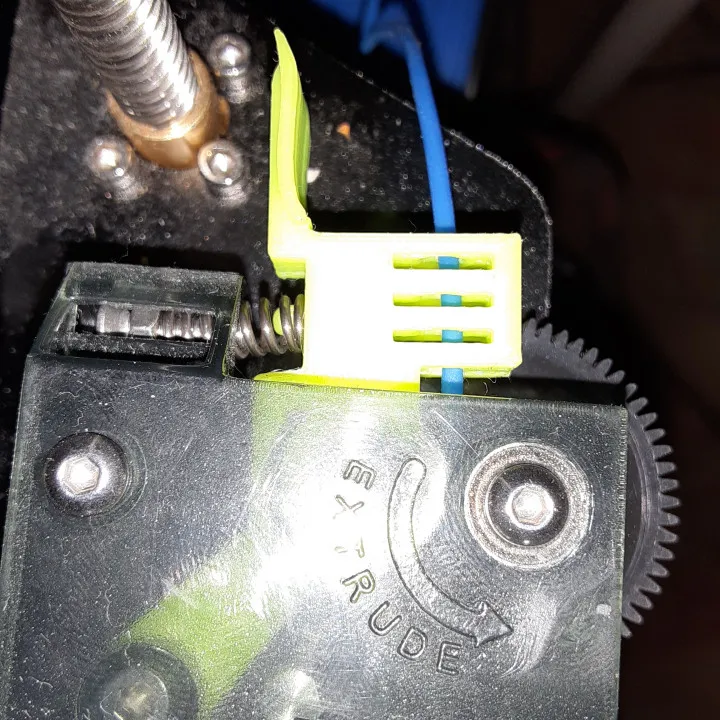

Clogged Nozzle
A clogged nozzle is a common problem that prevents filament from extruding properly. This can be caused by various issues, including incorrect temperature settings, debris in the filament, or filament degradation. To fix a clogged nozzle, first try heating the hot end to the appropriate temperature and using a thin needle or the cleaning tool that came with your 3D printer to clear the obstruction. You can also try doing a cold pull, where you heat the hot end, manually push filament through, then cool and remove it to pull out any debris. If the clog is persistent, you may need to replace the nozzle. Regular maintenance and cleaning are essential for preventing clogs. You may need to clear the clog more than once to remove all the debris.
Under-Extrusion
Under-extrusion happens when the extruder doesn’t push enough filament, resulting in gaps in the printed layers and a weak structure. This issue can stem from several sources, including incorrect E-step calibration, a clogged nozzle, or low printing temperatures. Calibrating the E-steps per millimeter setting is essential. Check the nozzle for clogs and ensure the hot end is heated to the correct temperature for your filament. Other factors can include incorrect slicing settings or a loose extruder gear. Make sure your extruder gear is tightened correctly. Careful calibration and adjustment of all the relevant settings is essential for getting a quality print.
Over-Extrusion
Over-extrusion occurs when the extruder pushes out too much filament, leading to excess material, blobs, and a rough surface finish. This can be caused by an incorrect extrusion multiplier setting, high printing temperatures, or incorrect E-step calibration. Start by calibrating the extrusion multiplier in your slicer to match the filament being used. Verify the hot end temperature is correct for the filament and adjust as needed. You may need to recalibrate your E-steps and verify that the settings in your slicer match the printer’s configuration. Proper calibration will prevent issues with the printed surface. By addressing these settings, you can mitigate this issue and improve the quality of your prints.
Conclusion
Mastering the Tevo Tarantula 2 extruder is key to unlocking the full potential of your 3D printer. By understanding its components, assembling it correctly, calibrating it properly, and troubleshooting common issues, you’ll be well-equipped to create high-quality prints consistently. Continuous learning and experimentation will refine your skills, enabling you to tackle more complex projects and refine your 3D printing capabilities. With the knowledge in this guide, you can make the most of your 3D printer and successfully print any project you have in mind.
