What You’ll Need for Tarantula 3D Printer Assembly
Embarking on the Tarantula 3D printer assembly journey can be a rewarding experience, offering a deep dive into the mechanics of 3D printing. Before you begin, gathering the necessary tools and ensuring all components are present is crucial for a smooth and successful assembly. This guide will walk you through everything you need, transforming your printer kit into a functional 3D printing machine. Proper preparation will save time and frustration, setting the stage for your 3D printing adventures.

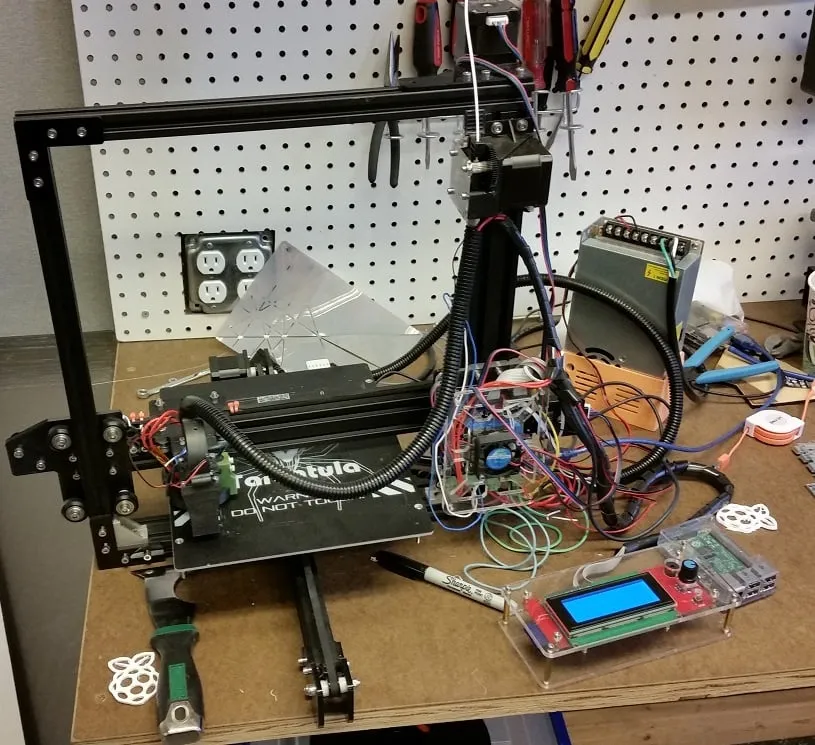

Tools Required
The Tarantula 3D printer assembly requires a specific set of tools to ensure each component is correctly installed and secured. You will need a set of Allen wrenches (hex keys) in various sizes, typically provided with the kit. A Phillips head screwdriver is essential for screwing in various components. A pair of pliers will be useful for handling small parts and wires. A hobby knife or flush cutters might be necessary for tidying up any excess plastic or cutting wires. Consider having a digital caliper for accurate measurements, and a soldering iron for any potential wire connections or modifications. A well-lit workspace and a clean surface are also helpful.
Components Checklist
Carefully unpack your Tarantula 3D printer kit and cross-reference the contents with the provided parts list. Common components include the frame, the heated bed, the extruder motor and hotend, the control board, stepper motors, limit switches (endstops), power supply, and various screws, nuts, and bolts. Ensure all pieces, from the smallest screws to the larger structural components, are accounted for. Verify that you have all the necessary cables, belts, and wiring harnesses. Missing parts can halt the assembly process, so take the time to inventory everything before beginning.
Step-by-Step Tarantula 3D Printer Assembly Guide
Now, let’s dive into the step-by-step assembly of your Tarantula 3D printer. Following these instructions precisely is vital to ensuring that the printer functions correctly. Read each step thoroughly before you begin. Take your time, and if you encounter any issues, consult the manual and online resources. Patience and attention to detail are key to a successful assembly.
Frame Assembly
Begin by assembling the frame of your Tarantula 3D printer. This usually involves connecting the vertical and horizontal frame pieces using screws and brackets. Ensure the frame is square and stable before moving forward. Tighten the screws firmly, but avoid over-tightening, which could damage the frame. Refer to the manual for the correct orientation of the frame components and the types of screws to use in each location. A properly assembled frame provides the structural foundation for the rest of the printer.

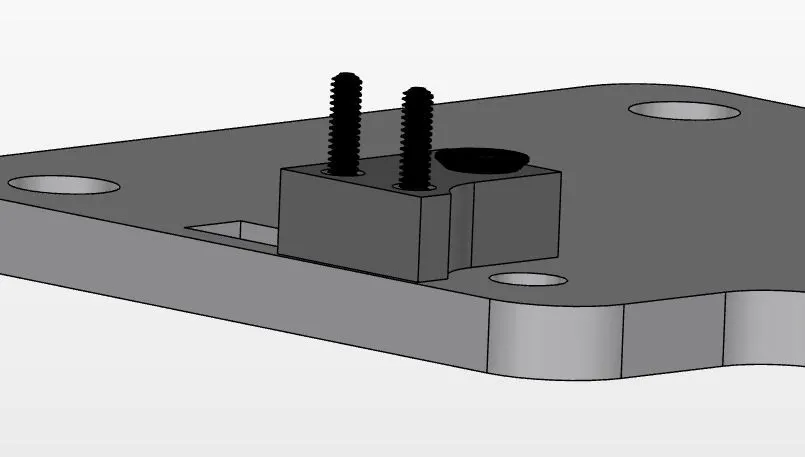

X-axis Assembly
The X-axis is the horizontal movement of the print head. Attach the X-axis components, including the linear bearings, to the gantry. Secure the belt and ensure the movement is smooth. The carriage, where the hotend will eventually attach, should move freely along the X-axis. Make certain that the belt is properly tensioned; too loose and it will cause imprecise movements, too tight and it will strain the motor. Regular adjustments might be needed for optimal performance.
Y-axis Assembly
The Y-axis controls the back and forth movement of the heated bed. Install the Y-axis rails, bearings, and the heated bed support structure. Attach the belt and ensure the bed moves smoothly along the rails without any binding. Adjust the belt tension to prevent slippage and ensure accurate positioning. The stability of the Y-axis is critical for consistent print quality.

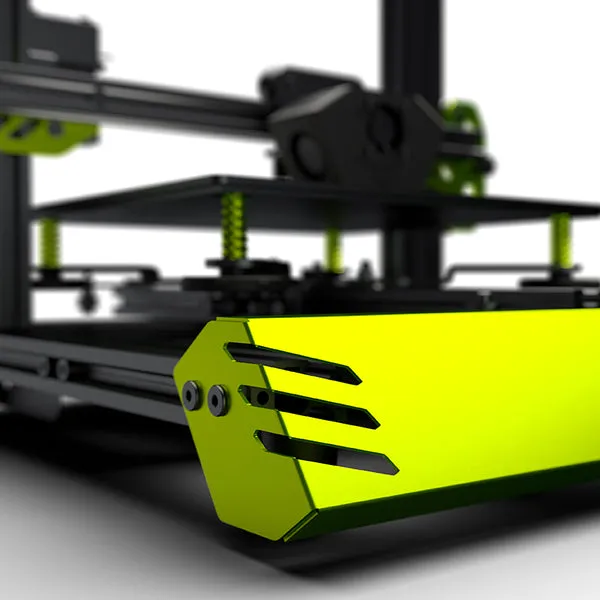

Z-axis Assembly
The Z-axis provides vertical movement, crucial for layer-by-layer printing. Assemble the Z-axis components, including the threaded rods, stepper motor mounts, and vertical supports. Ensure the Z-axis is aligned and moves smoothly without any resistance. Properly align the threaded rods so that the bed moves up and down evenly. This axis must be stable and precise for the prints to succeed.

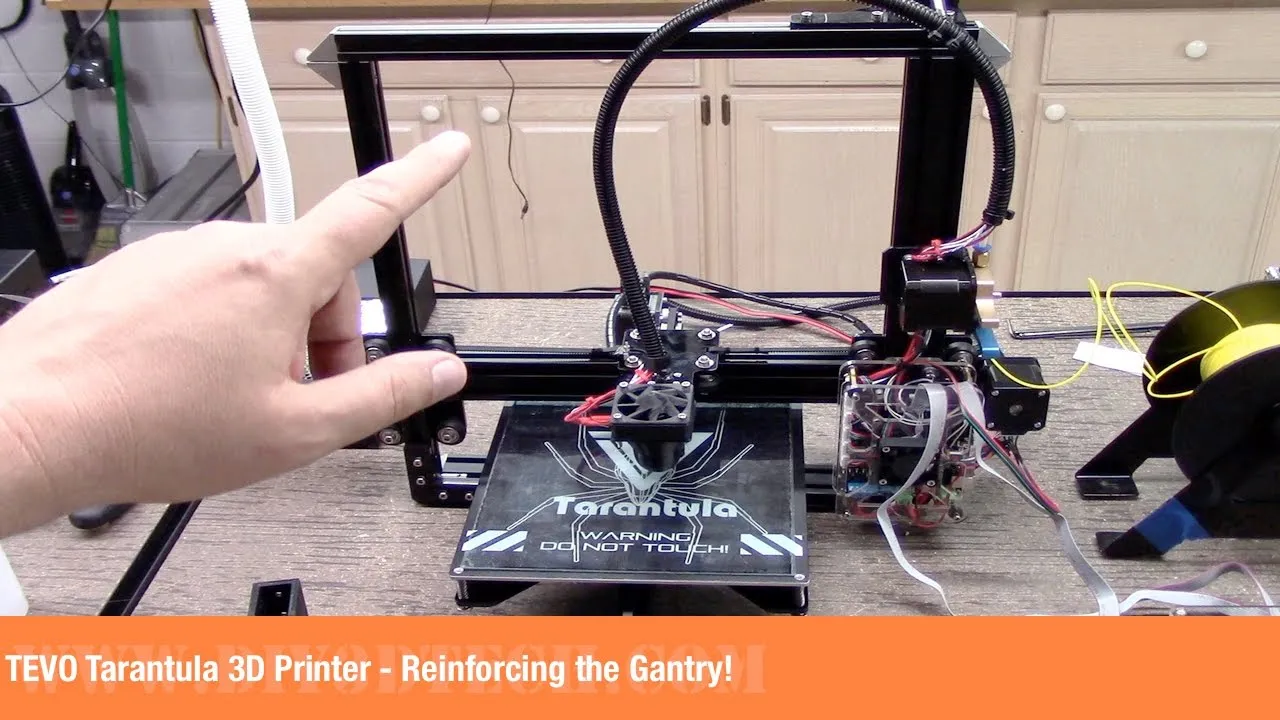

Hotend and Extruder Assembly
The hotend and extruder are responsible for melting and extruding the filament. Assemble the hotend components, including the heating element, nozzle, and thermistor. Mount the extruder motor and connect it to the hotend. Ensure the hotend is securely attached to the X-axis carriage and that the filament path is clear. Be careful during assembly; the hotend gets very hot during operation. The extruder’s gear must grip the filament correctly for a consistent flow.

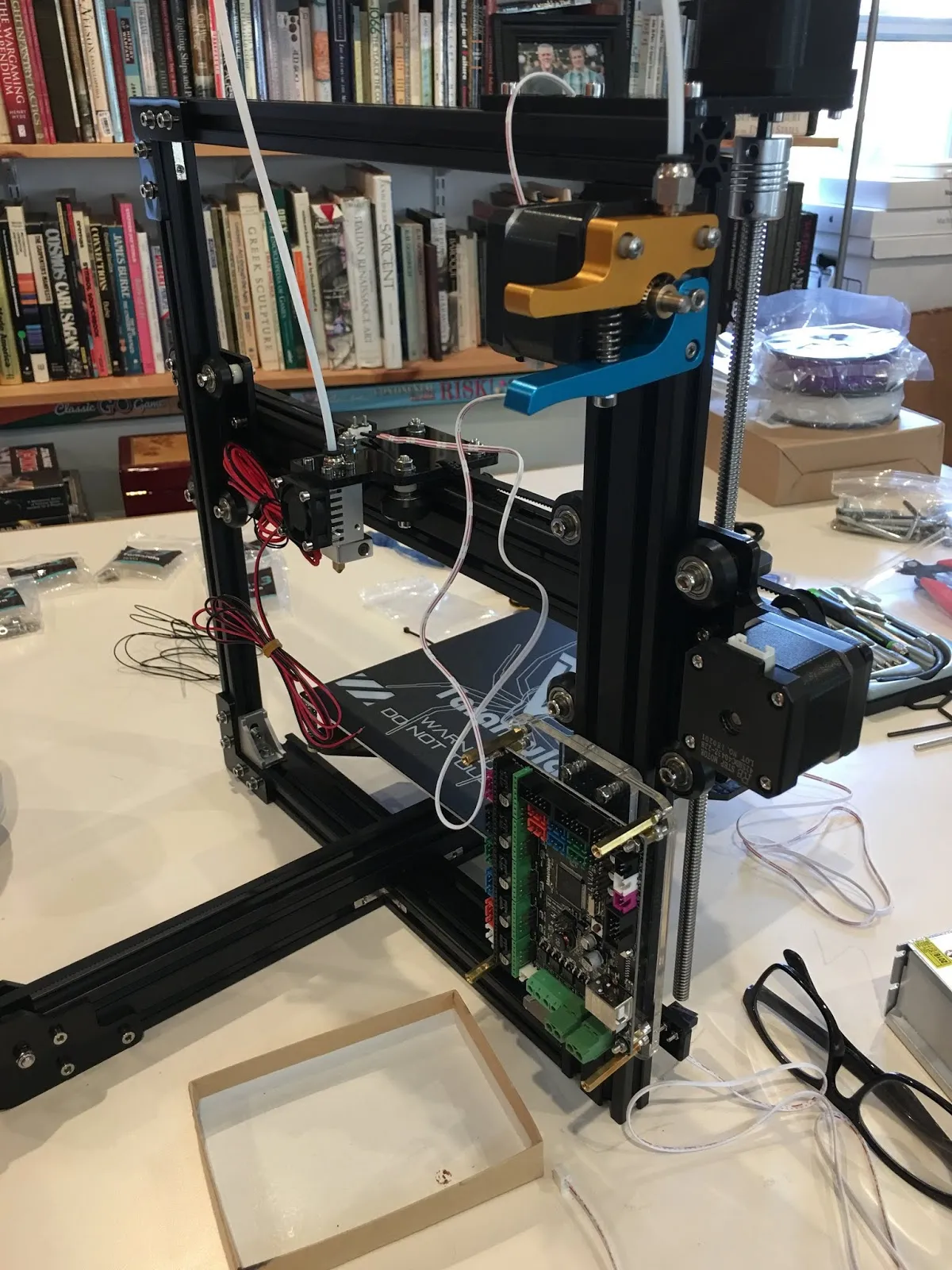

Wiring the Electronics
The wiring process is perhaps the most complex part of the assembly. Connect the control board to the stepper motors, endstops, heated bed, and hotend. Follow the wiring diagrams provided in the manual to ensure the correct connections. Incorrect wiring can damage components or cause the printer to malfunction. Double-check all connections before powering on the printer.
Connecting the Power Supply
Carefully connect the power supply to the control board. Ensure you use the correct voltage settings (110V or 220V) based on your region. Make certain that all the connections are secure and insulated to prevent electrical hazards. The power supply provides the energy needed for all other components.
Connecting the Stepper Motors
Connect the stepper motors to the control board. These motors control the movement of the X, Y, and Z axes, as well as the extruder. Match the motor wires to the correct terminals on the control board, referring to the manual. Incorrect wiring can cause the printer to move in the wrong direction or not at all.
Connecting the Endstops
Connect the endstops (limit switches) to the control board. These switches tell the printer when it has reached the end of a movement axis, preventing it from moving further and damaging the printer. They must be positioned correctly and connected to the proper terminals on the control board.
Bed Leveling and Calibration
Bed leveling and calibration are essential steps to ensure the first layer adheres to the bed correctly and the prints turn out properly. Proper calibration ensures the nozzle is the correct distance from the print bed, which is crucial for good print quality. This involves making adjustments to the bed’s height and the endstop positions.
Initial Leveling Procedure
Manually level the print bed by adjusting the leveling screws located under the bed. Position the nozzle over each corner and use a piece of paper to check the distance between the nozzle and the bed. The paper should have a slight friction when moved. Repeat this process until all corners are level. Consult the printer’s manual for detailed instructions.
Fine-Tuning Bed Leveling
After the initial leveling, you might need to fine-tune the bed leveling using the printer’s software. Run a bed leveling test print to check for any inconsistencies and adjust the bed as needed. Fine-tuning involves small adjustments to ensure the first layer adheres evenly to the bed across the entire surface.
First Print Preparation
Preparing for your first print involves several steps, from loading filament to configuring the printer settings. Before starting your first print, it’s wise to test with a small and simple model. This will help you to understand how the printer works and the best way to obtain successful prints.
Loading Filament
Insert the filament into the extruder, following the instructions in the manual. Heat up the hotend to the recommended temperature for your filament type. Gently push the filament through the extruder until it starts to come out of the nozzle. This process ensures that the filament is ready for printing.
Starting Your First Print
Select a test print file (usually provided with the printer) or a simple model. Load the file onto the printer’s SD card or connect the printer to your computer. Start the print and monitor the process. Observe the first layer to ensure it adheres to the bed. Make small adjustments to the bed leveling during the first layer to optimize adhesion. Pay attention to the print speed and the temperature settings. Be patient, and do not expect perfection with your first print.
Troubleshooting Common Issues
Even after careful assembly, you might encounter some common issues. Here are some troubleshooting tips to help resolve these problems.
Nozzle Clogging
Nozzle clogging is a common issue. If the filament stops extruding, the nozzle might be clogged. Try to heat up the nozzle to the filament’s melting temperature and use a needle to clear the obstruction. Also, ensure that the filament is clean and free from dust or debris. If the problem persists, you may need to disassemble and clean the nozzle completely or replace it.
Bed Adhesion Problems
If the first layer doesn’t stick to the bed, adjust the bed temperature and level. Clean the print bed with isopropyl alcohol to remove any oils or residue. Use adhesives such as glue stick or blue painter’s tape to improve adhesion. Ensure the nozzle is the correct distance from the bed.
Layer Shifting
Layer shifting occurs when the print layers are misaligned. Check the belt tension on the X and Y axes. Tighten any loose screws and ensure that the stepper motors are not skipping steps. Reduce the print speed if layer shifting occurs. If the issue persists, examine the motor drivers on the control board.
Assembling a Tarantula 3D printer is a rewarding project. By following this guide and taking your time, you’ll be well on your way to enjoying the world of 3D printing. Remember to stay patient, consult the manual, and troubleshoot any issues you encounter. Happy printing!
